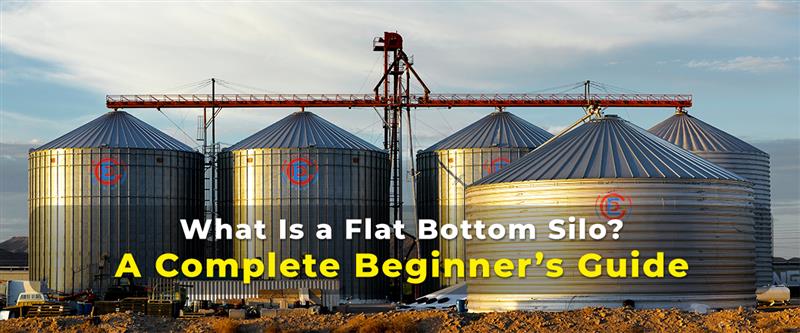

What Is a Flat Bottom Silo? A Complete Beginner’s Guide
Flat bottom silos are a vital component in agricultural and industrial storage systems, especially when it comes to storing bulk materials like grain, oilseeds, and other free-flowing commodities. Whether you’re new to the grain storage industry or just exploring storage options for your facility, understanding the basics of flat bottom silos can help you make informed decisions. This guide covers what they are, how they work, and why they might be the right choice for your operation.
What Is a Flat Bottom Silo?
A flat bottom silo is a cylindrical steel or concrete storage structure with a flat base. It is designed to store large quantities of dry bulk materials, most commonly grain. Unlike hopper bottom silos, which have a conical base to aid in gravity discharge, flat bottom silos require mechanical assistance for unloading materials from the bottom.
Key Components of a Flat Bottom Silo
- Cylindrical Body: Made of corrugated steel panels or concrete, designed to withstand internal pressure from stored grain.
- Flat Base: Typically concrete, providing stable support and allowing the silo to rest directly on a foundation.
- Roof Structure: Often conical and fitted with vents, ladders, and manholes for access and airflow.
- Aeration System: Includes fans and perforated floors or ducts to maintain proper grain temperature and moisture.
- Sweep Auger: Installed on the floor to help move the remaining grain toward the discharge point during emptying.
- Monitoring Systems: Sensors for temperature, moisture, and grain level to ensure safe and efficient storage.
How Flat Bottom Silos Work
- Filling: Grain is loaded into the top of the silo through conveyors or bucket elevators. It is evenly distributed using a spouting system or distributor.
- Storage: The grain sits on the flat concrete base. Aeration systems help maintain ideal conditions to prevent spoilage.
- Discharge: Gravity helps move some grain to a central discharge pit, but mechanical sweep augers are used to fully empty the silo.
Advantages of Flat Bottom Silos
- High Storage Capacity: Ideal for storing large volumes of grain over long periods.
- Cost-Effective: Lower construction cost per ton of storage compared to hopper silos.
- Durability: Designed for long-term storage with proper aeration and monitoring.
- Flexibility: Can store a variety of dry bulk materials beyond grain.
Limitations to Consider
- Requires More Unloading Equipment: Unlike hopper silos, flat bottoms rely on sweep augers and other equipment.
- Slower Discharge Process: Complete emptying takes more time.
- Foundation Requirements: Needs a strong concrete base to support the heavy load.
Is a Flat Bottom Silo Right for You?
If your operation requires long-term storage of large grain volumes, especially in a fixed location, flat bottom silos offer an efficient and economical solution. Their robust construction and adaptability make them a popular choice in large-scale agricultural and commercial storage facilities.
Conclusion
Flat bottom silos are a cornerstone of modern grain storage silo infrastructure. Understanding their structure, function, and benefits can help you plan and operate an efficient grain handling system. As always, evaluating your specific storage needs and consulting with silo experts can ensure you choose the right solution for your business.
